Generate pre-configured image

Howto is deprecated

The steps in this howto are no more required. If the data folder with files exists in the main directory, the files are automatically embedded into the .factory.bin file.

Introduction

This howto explains how to generate a image (.bin file) containing a custom pin_mapping.json or pre-configured config.json. You have to compile OpenDTU using VSCode.

Generate Filesystem image

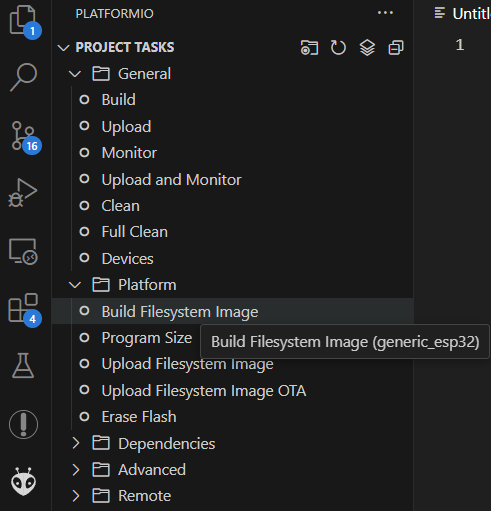

All configuration is placed in the so called "Filesystem Image". The image can be generated manually by creating a folder called data in the main directory of OpenDTU (where the platformio.ini is located). Then call the OpenDTU function "Build Filesystem Image" from the Project Tasks. It will generate file called littlefs.bin in the .pio/build/<environment> folder. The littlefs.bin file has to be flashed on address 0x3D0000 on the ESP (see Partition Table below).

Integrate filesystem into factory.bin

The esptool.py command can be used to manually generate a .factory.bin file which already contains the littlefs.bin.

A sample command for ESP32 would be:

esptool.py \
--chip esp32 merge_bin \
-o custom_firmware.factory.bin \
--flash_mode dio \
--flash_freq 40m \
--flash_size 4MB \
0x1000 bootloader.bin \
0x8000 partitions.bin \
0xe000 boot_app0.bin \
0x10000 firmware.bin \
0x3d0000 littlefs.bin

This command has to be executed in the .pio/build/<environment> folder. It will output a file called custom_firmware.factory.bin.

Partition Table

Name	Type	SubType	Offset	Size
nvs	data	nvs	0x9000	0x5000
otadata	data	ota	0xe000	0x2000
app0	app	ota_0	0x10000	0x1E0000
app1	app	ota_1	0x1F0000	0x1E0000
spiffs	data	spiffs	0x3D0000	0x30000

Contents of the data folder

The data folder should contain the following files:

pin_mapping.json
config.json

The contents of the pin_mapping.json can be obtained here.

The config.json should contain at least the following content:

{
    "cfg": {
        "version": 72448
    },
    "device": {
        "pinmapping": "<Name of device profile>"
    }
}

But of course you can set all other required settings. If no value is specified for a setting, the default values are used.
