Olimex ESP32-POE-ISO

Technical details

Property	Value
Name	Olimex ESP32-POE-ISO
Product Info	Link

Description

To use this board please refere to the Device Profile called olimex_esp32_poe.json. Depending on the features (LEDs) or display type you need you can easily adjust the existing config. Open the JSON file with a text editor and have a look at the specific pin numbers.

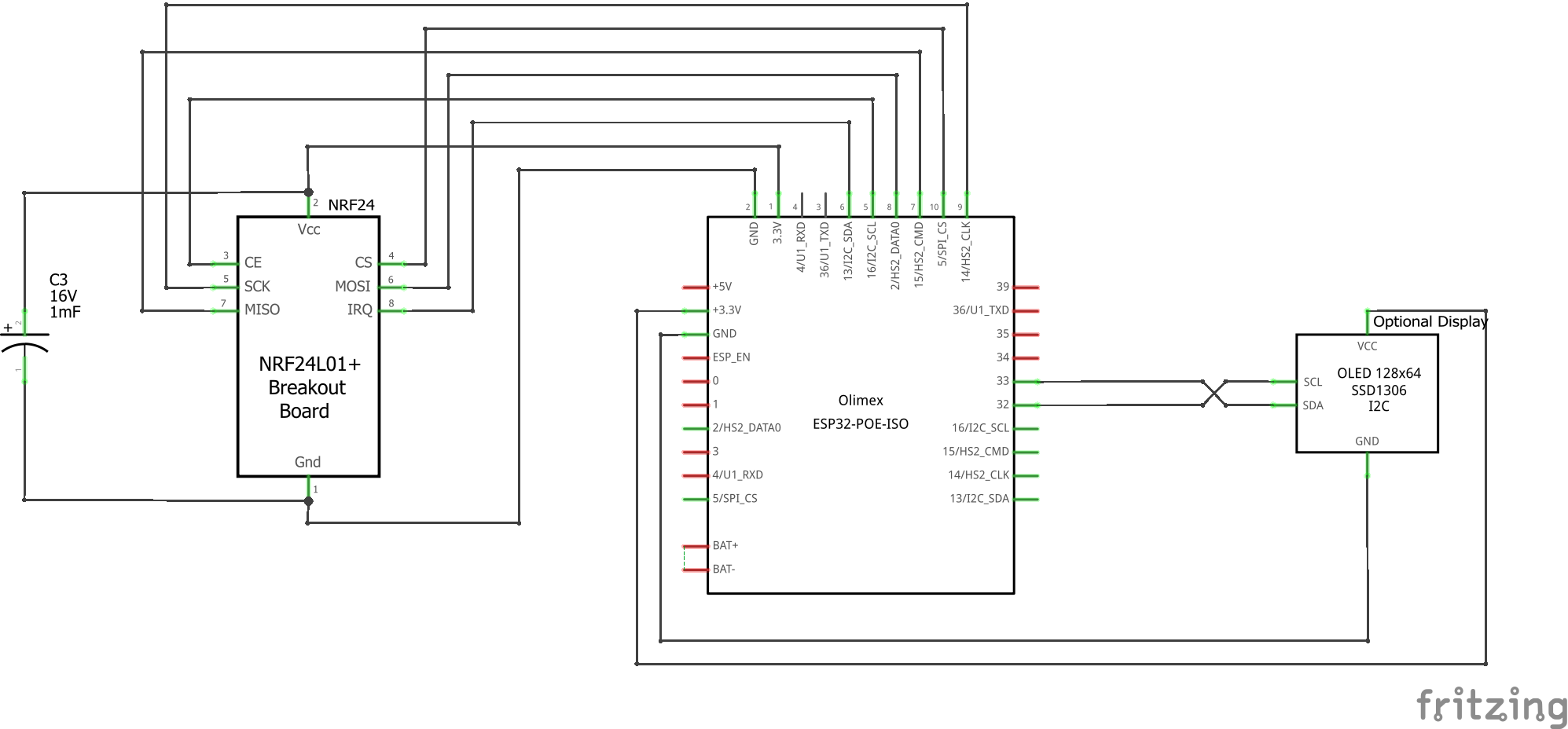

Schematic

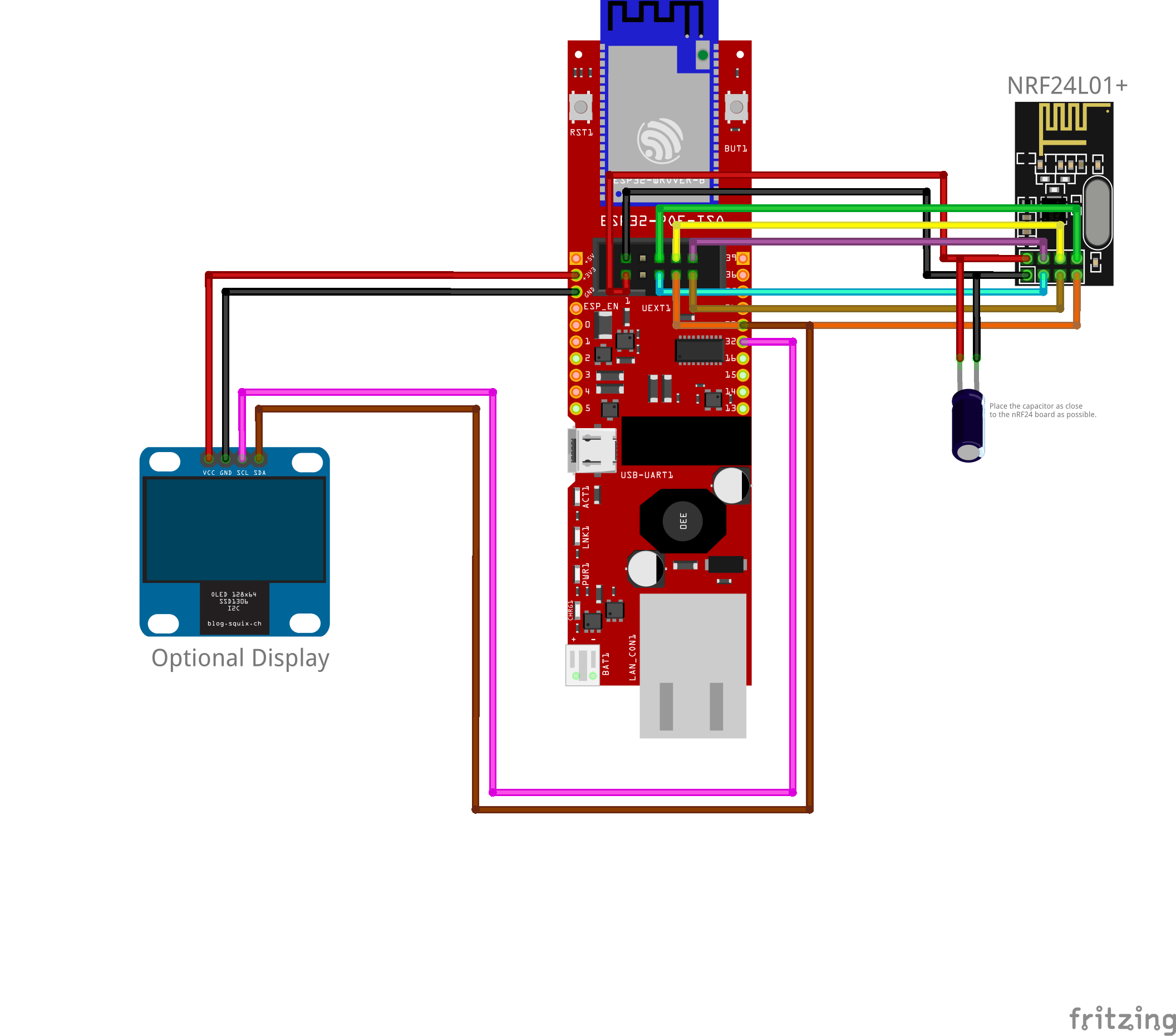

Symbolic View
